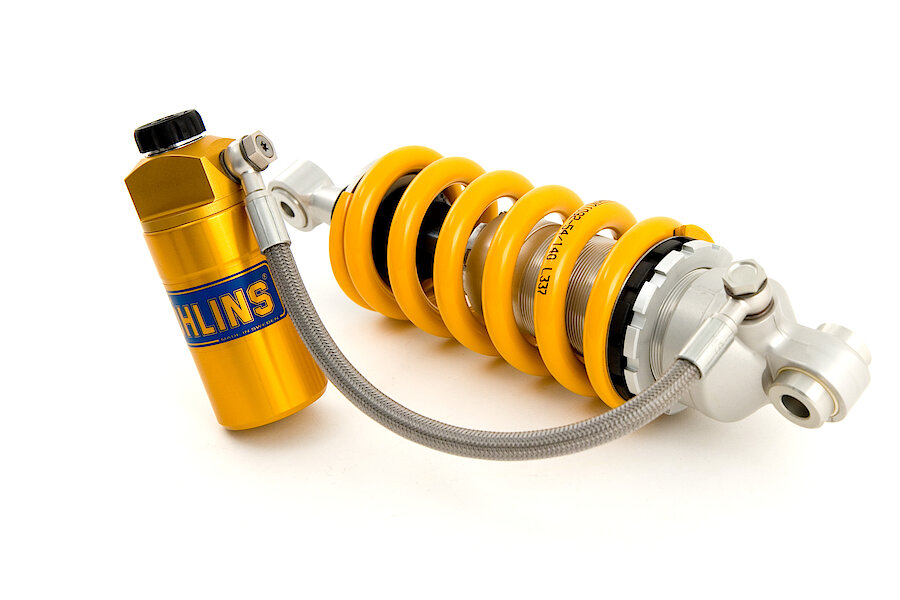

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

Type Code

S46HR1C1

S

Single tube

46

Piston diameter: 46 mm

H

Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1

Adjustable compression damping. Adjuster wheel or slot on the reservoir.

Technical data
